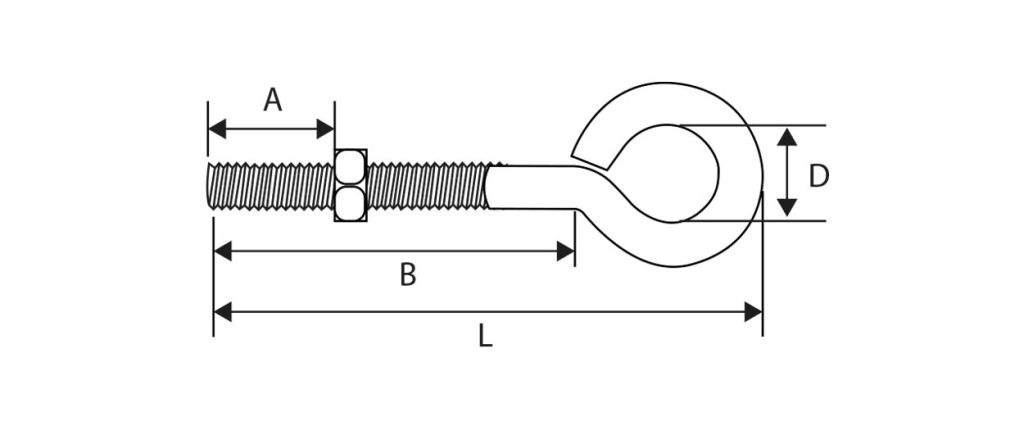

| Código | Nominal | Largo "L" | Envase | Diámetro Ojo | Longitud Rosca | Longitud | Usar Llave | |
|---|---|---|---|---|---|---|---|---|
| Pulg (mm) | (pulg)/(mm) | "D" (mm) | "A" (mm) | "B" Pulg (mm) | (mm) | |||
| Zincado Brillante | ||||||||
| 01POJ | 1/4 - 6.0 | 3" | 5 | u | 15 | 45 | 50 | 13/32 |
| 02POJ | 1/4 - 6.0 | 4" | 5 | u | 15 | 60 | 76 | 13/32 |
| 03POJ | 5/16 - 8.0 | 3.1/4 | 5 | u | 20 | 34 | 44 | 9/16 |
| 04POJ | 5/16 - 8.0 | 4" | 5 | u | 20 | 59 | 66 | 9/16 |
| 05POJ | 3/8 - 10.0 | 4" | 5 | u | 25 | 44 | 57 | 11/16 |
| 06POJ | 3/8 - 10.0 | 6" | 5 | u | 25 | 76 | 100 | 11/16 |
| 07POJ | 3/8 - 10.0 | 8" | 5 | u | 25 | 76 | 147 | 11/16 |
| 13POJ | 3/8 - 10.0 | 10" | 5 | u | 25 | 76 | 203 | 11/16 |
| 12POJ | 1/2 - 12.0 | 4" | 5 | u | 25 | 37 | 48 | 3/4 |
| 08POJ | 1/2 - 12.0 | 6" | 5 | u | 25 | 76 | 100 | 3/4 |
| 09POJ | 1/2 - 12.0 | 8" | 5 | u | 25 | 76 | 147 | 3/4 |
| 10POJ | 1/2 - 12.0 | 10" | 5 | u | 25 | 76 | 203 | 3/4 |
| 11POJ | 1/2 - 12.0 | 12" | 5 | u | 25 | 76 | 253 | 3/4 |
| Zincado Brillante | ||||||||
| 101POJ | M6 | 76mm | 5 | u | 15 | 45 | 50 | 13/32 |
| 102POJ | 101mm | 5 | u | 15 | 60 | 76 | 13/32 | |
| 103POJ | M8 | 82mm | 5 | u | 20 | 34 | 44 | 9/16 |
| 105POJ | M10 | 101mm | 5 | u | 25 | 44 | 57 | 11/16 |
| 107POJ | 203mm | 5 | u | 25 | 76 | 147 | 11/16 | |
| 112POJ | M12 | 101mm | 5 | u | 25 | 37 | 48 | 3/4 |
| 108POJ | 152mm | 5 | u | 25 | 76 | 100 | 3/4 | |
| 109POJ | 203mm | 5 | u | 25 | 76 | 147 | 3/4 | |
| 110POJ | 254mm | 5 | u | 25 | 76 | 203 | 3/4 | |
| 111POJ | 304mm | 5 | u | 25 | 76 | 253 | 3/4 | |
