[PCO] Perno Coche UNC / BSW

Tabla

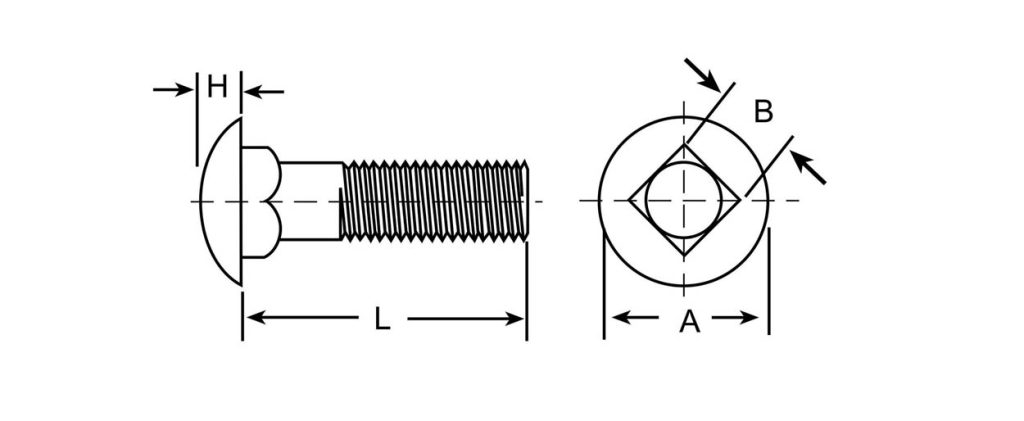

Código	Diámetro	Largo "L"	Envase	U	Diámetro Cabeza "A"	Altura Cabeza "H"	Entre caras Cuadrado "B"	Diámetro Broca	Largo Rosca
Pavonado
85PCO	1/4-20	5/8	100	U	14.3	3.2	6.2	6.5	Total
72PCO		3/4
01PCO		1"
02PCO		1 1/4
03PCO		1 1/2
04PCO		2"
86PCO		2,1/4
05PCO		2 1/2
06PCO		3"
07PCO		3 1/2
08PCO		4"
09PCO		4 1/2
57PCO		5"
58PCO		6"
84PCO	5/16-18	5/8	100	U	17.5	4.0	7.8	8	Total
73PCO		3/4
10PCO		1"
11PCO		1 1/4
12PCO		1 1/2
13PCO		2"
14PCO		2 1/2
15PCO		3"
16PCO		3 1/2
17PCO		4"
18PCO		4 1/2
19PCO		5"
20PCO	5/16-18	6"	50	U					Parcial
21PCO		7"
83PCO		8"
22PCO	3/8-16	1"	100	U	19.9	4.8	9.4	9.5	Total
23PCO		1 1/4
24PCO		1 1/2
25PCO		2"
26PCO		2 1/2
27PCO		3"
28PCO		3 1/2
29PCO		4"	50	U					Parcial
30PCO		4 1/2
31PCO		5"
32PCO		5 1/2
33PCO		6"
34PCO		6 1/2
35PCO		7"
36PCO		8"
37PCO		9"
38PCO		10"	25	U
39PCO		11"
74PCO		12"
75PCO		14"
40PCO	1/2-12	1 1/2	50	U	26.2	6.4	12.5	13	Total
41PCO		2"
42PCO		2 1/2
43PCO		3"
44PCO		3 1/2
45PCO		4"
46PCO		4 1/2
47PCO		5"
48PCO	1/2-12	6"	25	U
59PCO		7"	10	U					Parcial
60PCO		8"
76PCO		10"
77PCO		12"
78PCO		14"
61PCO	1/2-13	1 1/2	50	U	26.2	6.4	12.5	13	Total
62PCO		2"
63PCO		2 1/2
64PCO		3"
65PCO		3 1/2
66PCO		4"
67PCO		4 1/2
68PCO		5"
69PCO		6"
49PCO	5/8-11	2 1/2	25	U
50PCO		3"
51PCO		4"
52PCO		5"
53PCO		6"
87PCO	3/4-10	2 1/2	25	U	37.5	9.5	18.8	20	Total
54PCO		4"
55PCO		5"
56PCO		6"
Zincado Brillante
B85PCO	1/4-20	5/8	100	U	14.3	3.2	6.2	6.5	Total
B72PCO		3/4
B01PCO		1"
B02PCO		1 1/4
B03PCO		1 1/2
B04PCO		2"
B86PCO		2.1/4
B05PCO		2 1/2
B06PCO		3"
B07PCO		3 1/2
B08PCO		4"
B09PCO		4 1/2
B57PCO		5"
B58PCO		6"
B84PCO	5/16-18	5/8	100	U	17.5	4.0	7.8	8	Total
B73PCO		3/4
B10PCO		1"
B11PCO		1 1/4
B12PCO		1 1/2
B13PCO		2"
B14PCO		2 1/2
B15PCO		3"
B16PCO		3 1/2
B17PCO		4"
B18PCO		4 1/2
B19PCO		5"
B20PCO		6"	50	U
B22PCO	3/8-16	1"	100	U	19.9	4.8	9.4	9.5	Total
B23PCO		1 1/4
B24PCO		1 1/2
B25PCO		2"
B26PCO		2 1/2
B27PCO		3"
B28PCO		3 1/2
B29PCO		4"	50	U					Parcial
B30PCO		4 1/2
B31PCO		5"
B32PCO		5.5
B33PCO		6"
B35PCO		7"
B36PCO		8"
B38PCO		10"	25	U
B39PCO		11"	25	U
B40PCO	1/2-12	1 1/2	50	U	26.2	6.4	12.5	13	Total
B43PCO	1/2-12	3"	50	U	26.2	6.4	12.5	13	Total

Características

Ficha técnica en PDF:

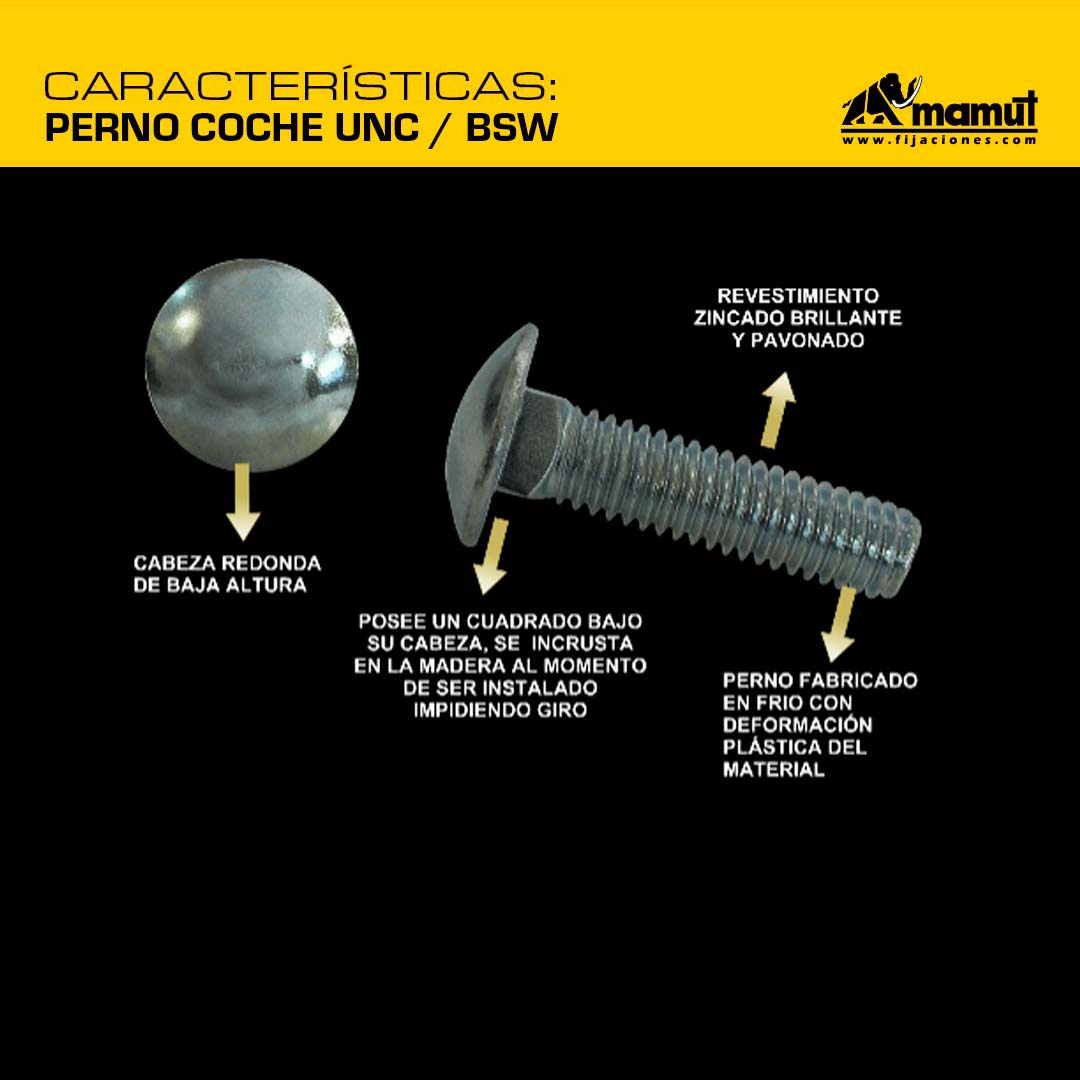

Características

Perno fabricado en frío mediante deformación plástica del material.

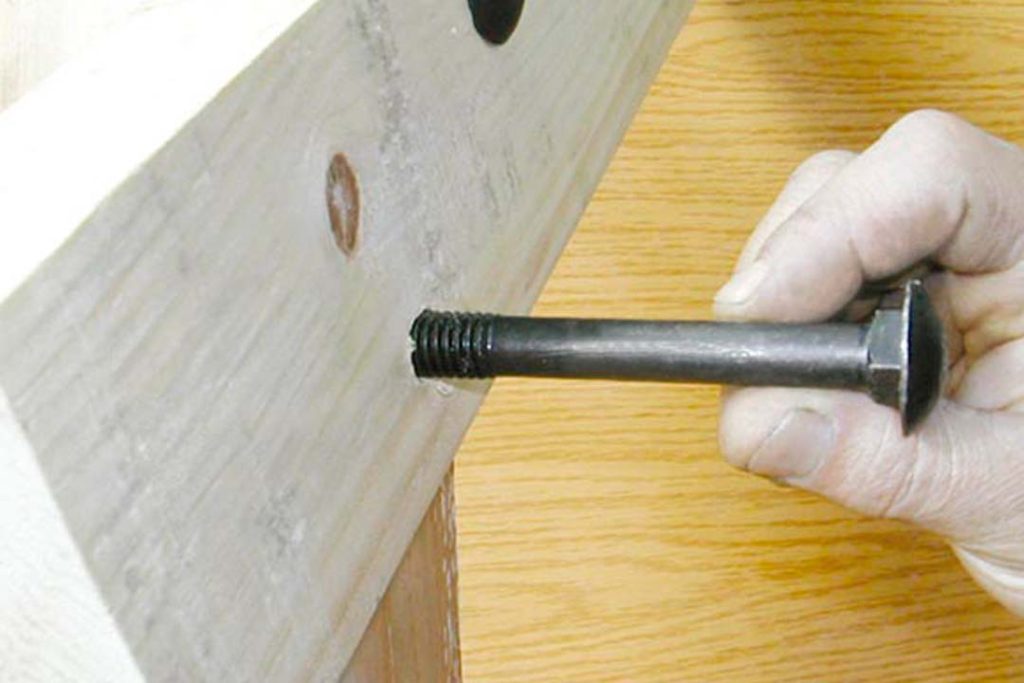

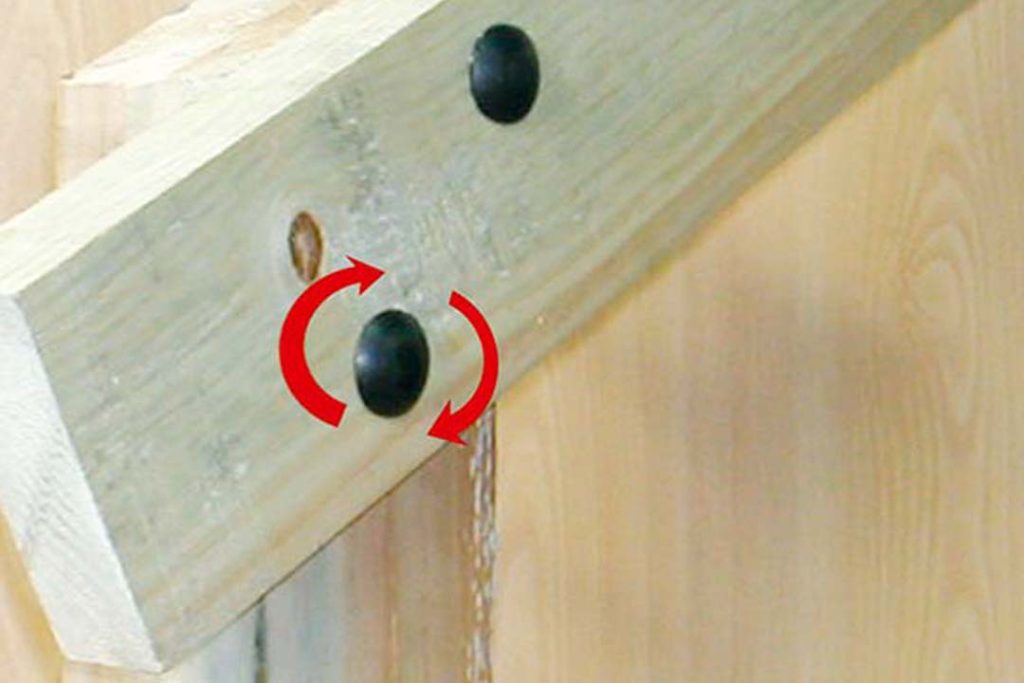

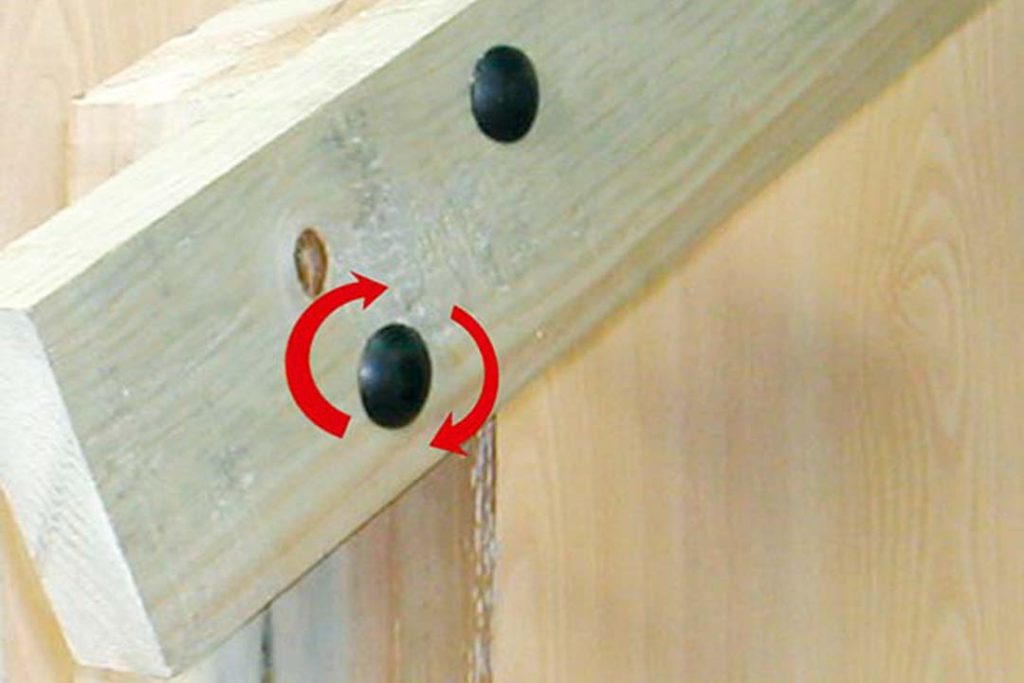

Posee un cuadrado bajo la cabeza que se incrusta en la madera al instalarlo, impidiendo su giro.

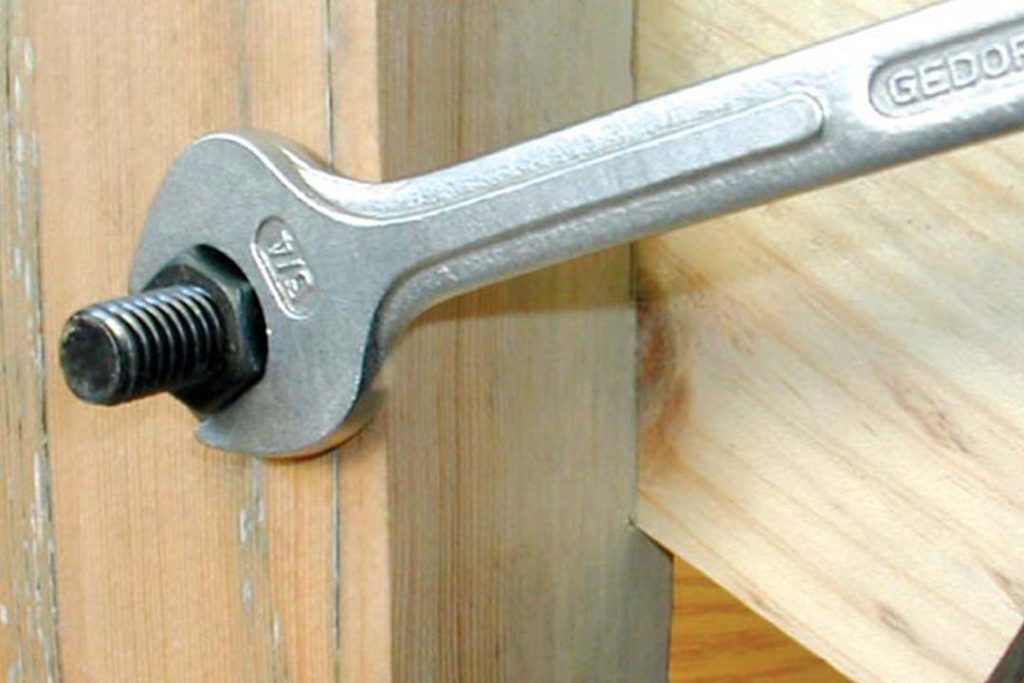

Se utiliza en conjunto con tuerca y golilla.
Revestimiento: zincado brillante y pavonado.

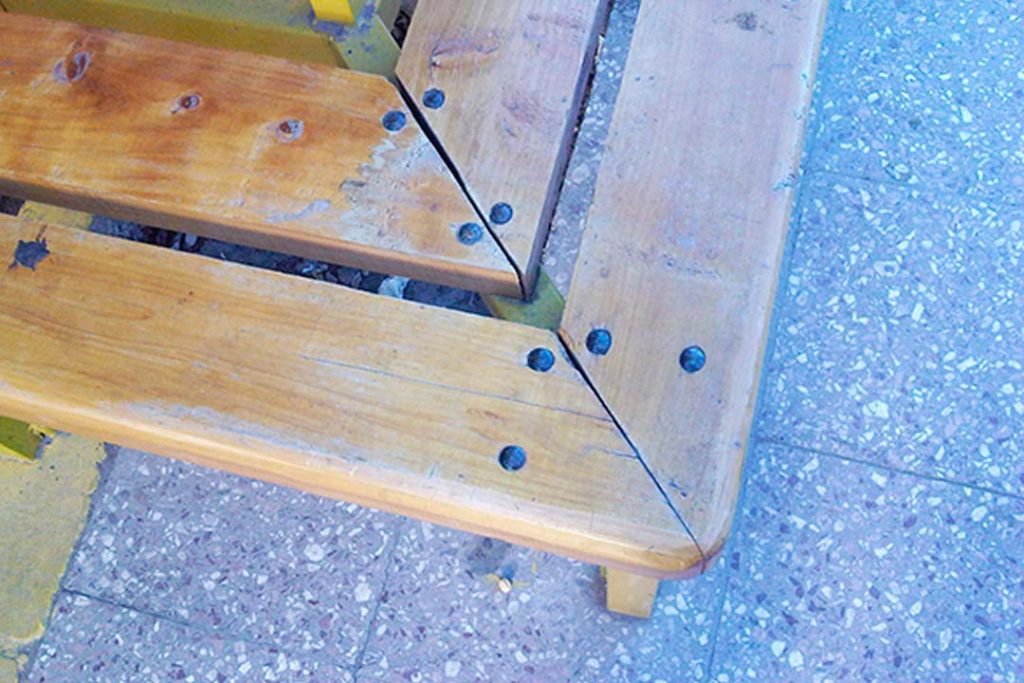

Cabeza redondeada que otorga superficies más seguras e impide el desarme por el lado exterior.
